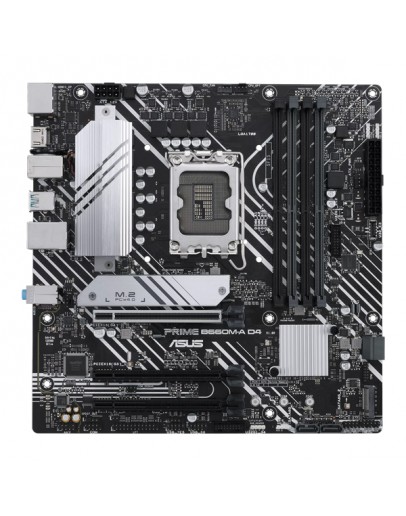

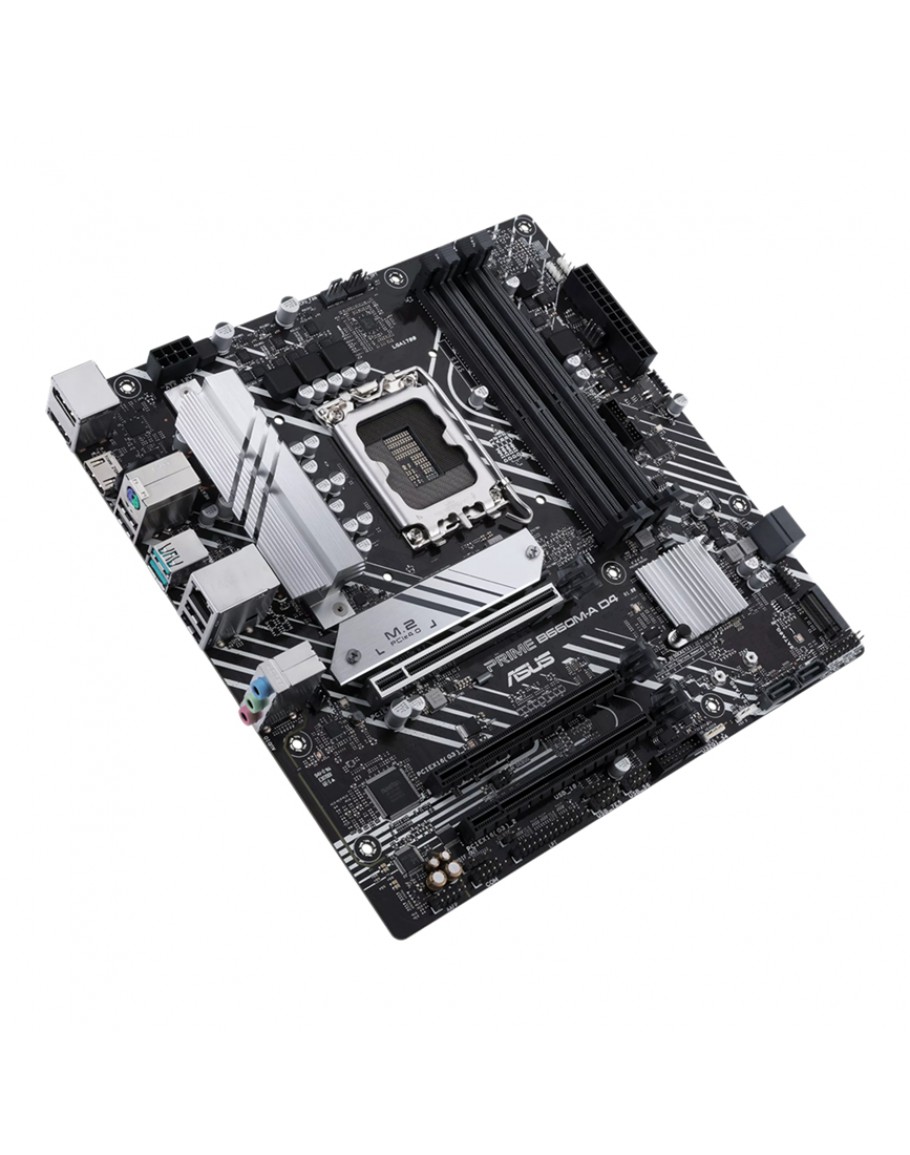

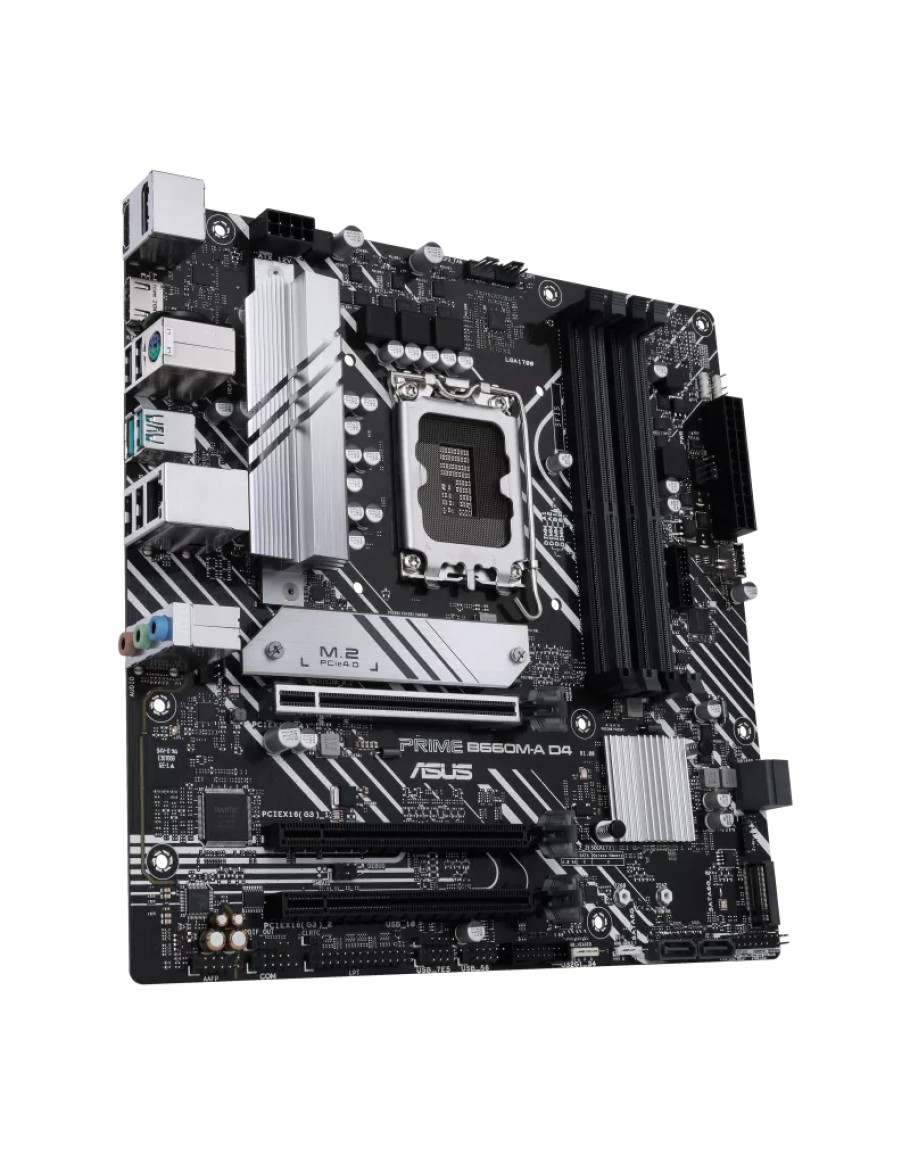

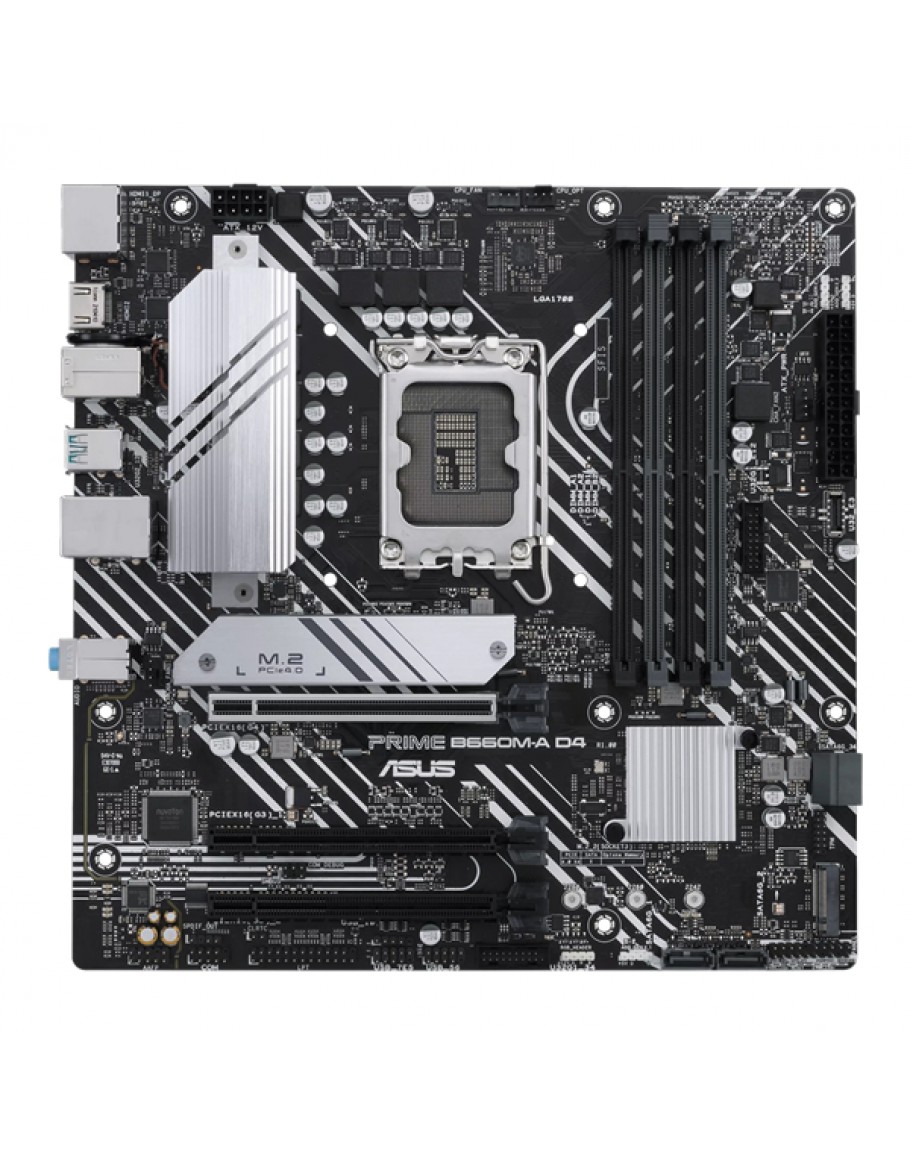

ASUS PRIME B660M-A D4-CSM
- €184.73 | 361.30лв.
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/prime/prime-b660m-a-d4-csm/ | |
| Manufacturer | Asus | |
| Model | PRIME B660M-A D4-CSM | |
| Graphics | 1 x DisplayPort **; 2 x HDMITM ports***; * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.; ***Supports 4K@60Hz as specified in HDMI 2.1.; 1 x DisplayPort**; 2 x HDMI® ports***; * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.; ***Supports 4K@60Hz as specified in HDMI 2.1. | |
| CPU's supported | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**; * Refer to www.asus.com for CPU support list.; ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**; * Refer to www.asus.com for CPU support list.; ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel® B660 Chipset; Intel® B660 Chipset | |
| Expansion slots | Intel® 12th Gen Processors; 1 x PCIe 4.0/3.0 x16 slot; Intel® B660 Chipset; 1 x PCIe 3.0 x16 slot (supports x4 mode); 1 x PCIe 3.0 x16 slot (supports x1 mode); *Supports Intel® Optane Memory H Series on PCH-attached PCIe slot; 1 x PCle 4.0 x16+1 x PCle 3.0 x16 (max. x4)+2 x PCle 3.0 x16 (max. x1); Intel® Core™ Processors (14th & 13th & 12th Gen)*; 1 x PCIe 4.0/3.0 x16 slot; Intel® B660 Chipset *; 1 x PCIe 3.0 x16 slot (supports x4 mode); 1 x PCIe 3.0 x16 slot (supports x1 mode) | |
| Storage | Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*; Intel® 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280; - Intel® 12th Gen processors support PCIe 4.0 x4 mode.; Intel® B660 Chipset**; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports; * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.; ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots; Intel® Core™ Processors (14th & 13th & 12th Gen)*; M.2_1 slot (Key M), type 2242/2260/2280; Intel® B660 Chipset**; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*; 4 x SATA 6Gb/s ports; * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.; ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. | |
| Memory type | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* ; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem II; *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.; 4 x DIMM, Max. 128GB, DDR4; 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem II; *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |

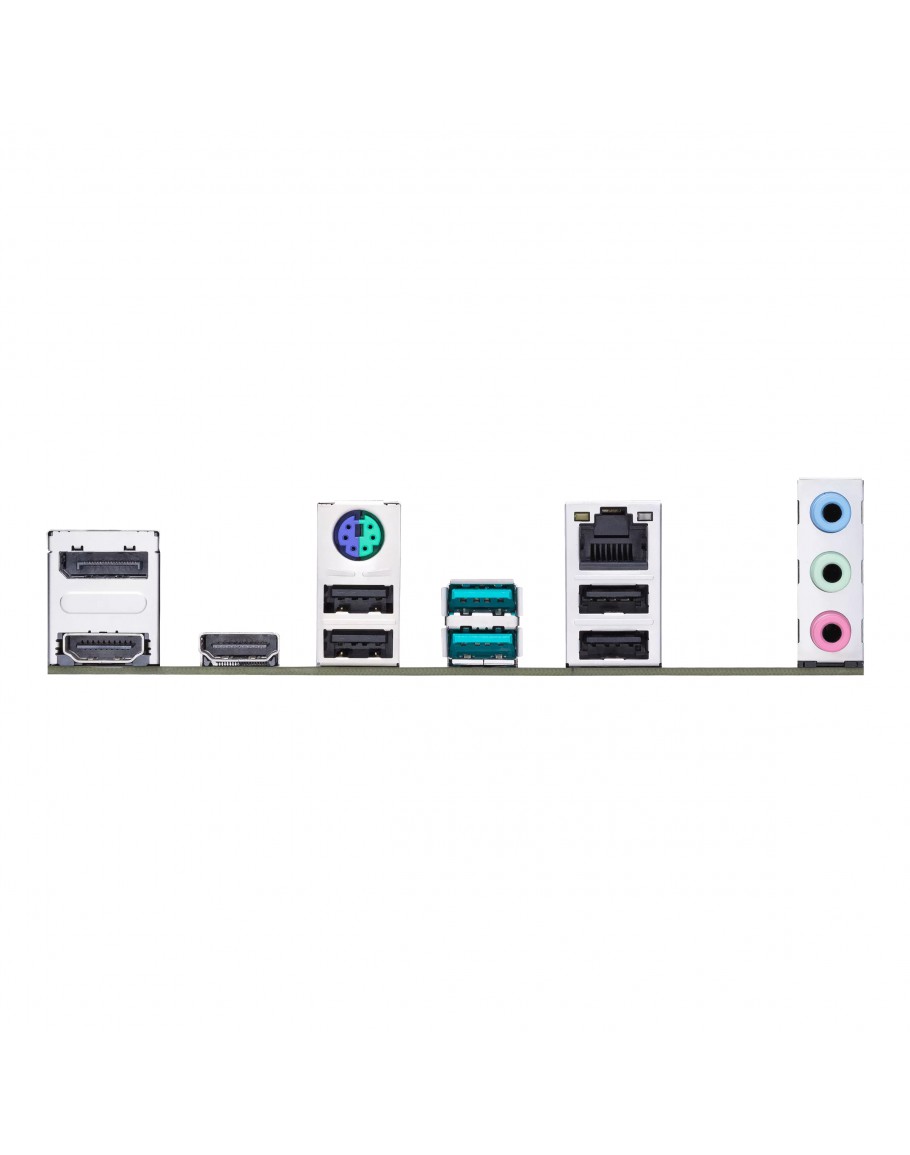

| Rear panel I/O | 2 x USB 3.2 Gen 2 ports (2 x Type-A ); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 2 x HDMITM ports; 1 x Intel® 1Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 Keyboard/Mouse combo port; 2 x USB 3.2 Gen 2 ports (2 x Type-A ); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 2 x HDMI® ports; 1 x Intel® 1Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 Keyboard/Mouse combo port | |
| USB | Rear USB (Total 6 ports); 2 x USB 3.2 Gen 2 ports (2 x Type-A ); 4 x USB 2.0 ports (4 x Type-A) ; Front USB (Total 10 ports); 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports; 1 x USB 3.2 Gen 1 connector (supports USB Type-C®); 2 x USB 2.0 headers support additional 4 USB 2.0 ports; 1 x USB 2.0 header support 1 USB 2.0 port; 2 x USB 3.2 Gen 2 ports (2 x Type-A ); 4 x USB 2.0 ports (4 x Type-A); Front USB:Total 10 ports; 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports; 1 x USB 3.2 Gen 1 connector (supports USB Type-C®); 2 x USB 2.0 headers support additional 4 USB 2.0 ports; 1 x USB 2.0 header supports 1 USB 2.0 port | |
| Connectors | Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 2 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports; 1 x USB 3.2 Gen 1 connector (supports USB Type-C®); 2 x USB 2.0 headers support additional 4 USB 2.0 ports; 1 x USB 2.0 header supports 1 USB 2.0 port; Miscellaneous; 3 x AURA Addressable Gen 2 headers; 1 x AURA RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x LPT header; 1 x S/PDIF Out header; 1 x SPI TPM header (14-1pin); 1 x 20-3 pin System Panel header with Chassis intrude function; Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 2 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports; 1 x USB 3.2 Gen 1 connector (supports USB Type-C®); 2 x USB 2.0 headers support additional 4 USB 2.0 ports; 1 x USB 2.0 header supports 1 USB 2.0 port; Miscellaneous; 3 x AURA Addressable Gen 2 headers; 1 x AURA RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x LPT header; 1 x S/PDIF Out header; 1 x SPI TPM header (14-1pin); 1 x 20-3 pin System Panel header with Chassis intrude function | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.; Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers | |
| Lan | 1 x Intel® 1Gb Ethernet | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form factor | mATX Form Factor | |
| OS | Windows® 11 64-bit, Windows® 10 64-bit | |
| Dimensions | 24.4 cm x 24.4 cm |
